Red color coated aluminum roofing coil

0.5mm thick red color coated aluminum strip coil for metal roofing product

Color coated Aluminum Coil
 Painted color coated aluminum coil has advantages as light weight, beautiful appearance

 and good anti-corrosion performance, and can be directly processed, save energy and prevent pollution.







Specification of color coated aluminum coil
Temper 0-H112
Thickness from 0.5 to 1.1mm
Width width up to 1.6meters
Coating Thickness PE: >=16micron, PVDF: >= 25micro
Protective Film accoding to customer's request, can print customer logo
Color solid, high gloss, stone, wood grain, mirror, or by custumer's request
Surface Finishing coating
Weight as customer's request
Gloss 10%-100%
Product Line 8sets from Germany
Application wall decoration, construction
Alloy 1000series, 3000 series, 8000series, etc
Coating Hardness (pencil resistance) more than 2h
Coating paint AC, PE, HDPE, PVDF, FEVE, Epoxy, etc
Impact Resistance no peeling or cracking(50kg/cm, ASTMD-2794:1993)
Flexibility(T-bend) ≤2t
MEK Resistance more than 100
Coating Adhesion 5J(EN ISO-2409:1994

8 production lines imported from Germany




Production line 1
Main Product:roofing
Conventional production of primer 10-11  topcoat 15-16 total film thickness not less than 25 μm
Thickness:0.56-1.16mm
Alloy:3000 Series h24


Production line2

Main Product:curtain wall
Primer minimum 13μm , Top coating 15-16μm can Guaranteed performance,  Printing varnish11-12μm ,

Total coating thickness 40μm
Printing Scope:three color stone grain and double color wood garin,
Double coating on back( ≤1.2mm)+double coating on top


Production line3

Production Scope:1. Ceiling, 2.roller shutter, 3.aluminum strip
Thickness:0.21-1.5mm, Width:50-1400mm
Slitting deviation control ±1mm , wasted side≥2 mm
Production line4

Cutting scope:
Width: within 1600mm
Thickness: 0.4-3.0mm
Cutting length:6000mm
Size deviation control: Length ±1mm.

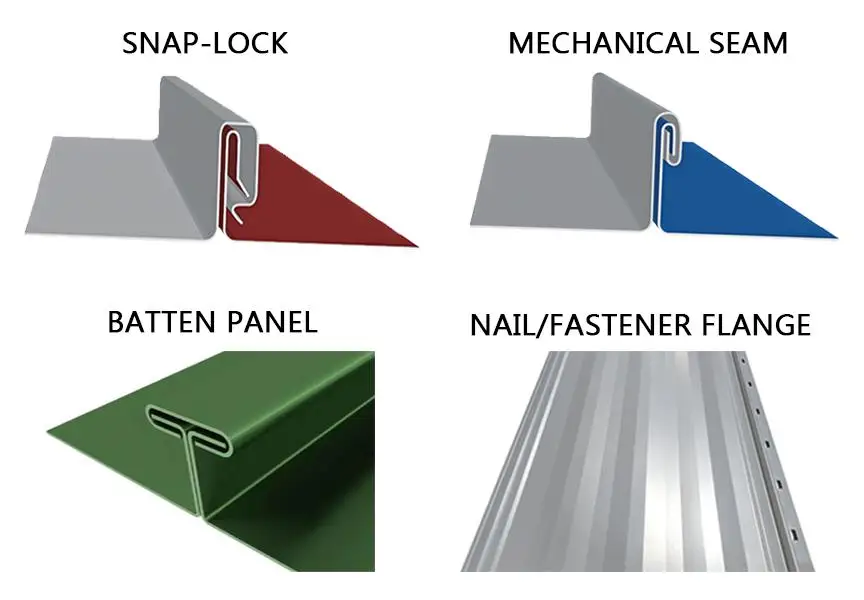

4 kinds of Standing seam metal roofing


Standing seam metal roofing

is defined as a concealed fastener metal panel system that features vertical legs and a broad, flat area between the two legs.

It’s also described as having raised seams, or vertical legs, that rise above the level of the panel’s flat area. Standing seam

 systems can be used for either metal roofing, which is the most common, or metal walls.

The main idea to remember for standing seam systems is that the fastener is hidden, whether the panel is attached to the roof


deck using a clip or is directly fastened to the decking material under the vertical leg using a fastener flange.


Application of aluminum red color coated coil

About company
aluminum coil1.jpg

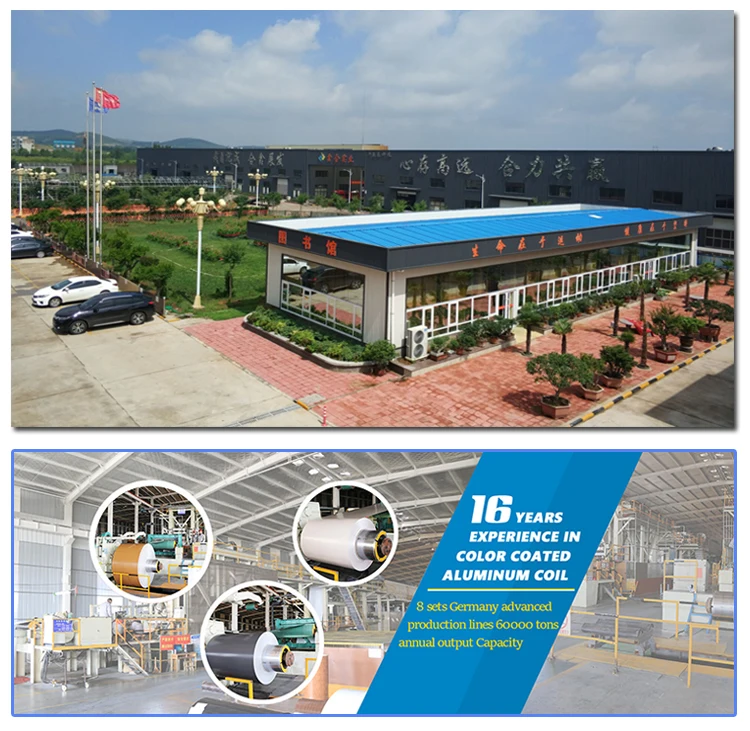

Shandong Hengzhan Building Materials Co.,Ltd is one of the biggest company in color

coated aluminum coil and single panel, which has 16 years experience and covers an

area of 60,000 square meters.

Shandong Hengzhan Building Materials Co.,Ltd are one of the earliest in color coated


aluminum coil and panel, we have continuous innovations on basis of rich experience

and advanced international technology.
We cooperate with SWa and CHINALCO, pre-treament agent by HENKEL, and Nippon Paint,

 PPG paint a strategic cooperation.


Company advantages:
a. 16year experience in Color Coated Aluminum Coil
b. OEM and ODM as customers requirement
c..ISO9001 and ISO14001,OHSAS ,SGS ect certifications
d. Famous brand materials and good service
e. Strict quality control with import test machines
f. Imported 8 sets automatic production line
g. professional sales team
