0.2 - 3.0mm Thickness Color Coating Prepainted Aluminum Aluminium Coils for Building Decoration Materials
Pre-painted (Color Coated) aluminum alloys coil is firstly painted on the surface of the aluminum plate with good color
difference control and uniform paint film. It has the ability to be folded during fabrication without any detriment to the
surface. For example, PVDF paint has high weather resistance, can be guaranteed 15 - 20 years color warranty.
All our pre-coat aluminium finishes are tough and hardwearing, although if you are looking for an extended warranty then
PVdF is an option. This is our paint finish pre-coated aluminium that has the ability to be folded during fabrication without
any detriment to the surface.
| Alloy | AA3004 3105 5005 5052 5754 |
| Temper | H24/34 |
| Thickness | From 0.2mm to 3.0 mm |
| Width | From 40 - 1600 mm |
| Diameter | Standard dia:1100mm Interior dia:150mm, 405mm, 505mm |
| Weight | 0.5 - 3.0 Tons per coil |
| Coating | PVDF |
| Surface | Embossed, Coated, Pre-painted, Anti-scratch, Sturcture, Smooth |
| Color | RAL Color System or Customized |
| Gloss | 3 - 110 (EN ISO-2813:1994) |
| Coating Thickness | PE: more than 18 micron PVDF: more than 25 micron |
| Coating Hardness(pencil resistance) | More than 2h |
| Coating Adhesion | 5J (EN ISO-2409:1994) |
| Impact Resistance | No peeling or cracking (50 kg/cm,ASTMD-2794:1993) |
| Flexibility (T-bend) | 90, 1T, 2T, 3T |
| MEK Resistance | More than 150 |
Q: What's your company's main products?

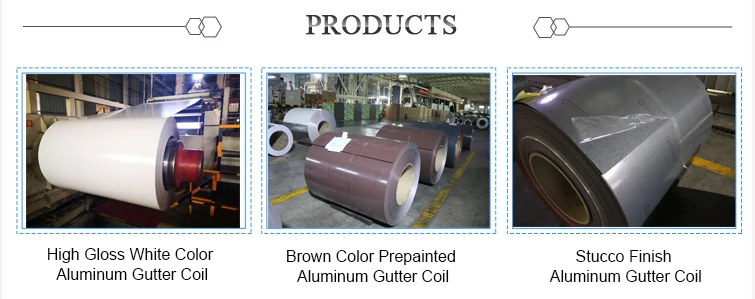

A: Color coated aluminum coil/sheet for roofing, gutter, ceiling, and curtain wall.
Q: How long can I get a quote?
A: The quotation can be provided no longer than 24 hours on condition that we know all detailed requirements.
Q: Can I get samples?
A: Free sample can be offered. Delivery can be arranged within 48 hours.
Q: Delivery time
A: 3 ~ 8 day workdays (in Stock); 30 ~ 38 day workdays (out of Stock).
Q. Why can I trust you and place an order with you?
A: From 2002 to 2019 is with 17 years' experience in this industry, we have served clients
from more than 100 countries, Hengzhan is well-known for its quality and team, and wins clients' trust by honesty and down to earth business style.
Q: Can you provide OEM service?
A: Yes. Color, size, protective film and coating can be customized. We also can produce under your own brand name as long as the logo and design are provided.
