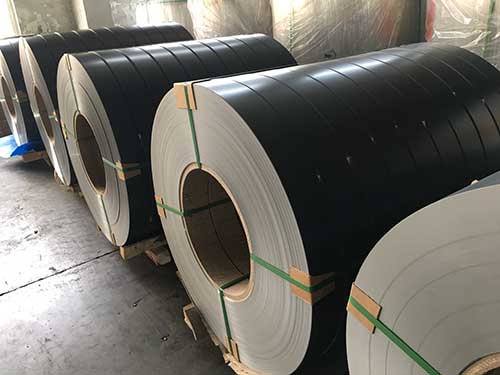

Aluminum Trim Coil Black

Black exterior trim remains popular in residential siding, gutters, fascia, window capping, and commercial cladding. However, the main risk with aluminum trim coil black is not the base metal. It is coating durability: color consistency, chalk resistance, scratch resistance, and long-term adhesion after forming.

For fabricators and construction-material distributors, a dark finish requires stricter specification control than light colors. Black surfaces absorb more solar energy, making coating quality, substrate flatness, and installation clearance especially important in high-temperature exposure.

Specify the Coating System Before Comparing Gauge or Price

A black prepainted aluminum coil is generally produced from an aluminum substrate that is cleaned, chemically pretreated, coated, oven cured, and slit to width. The finish may look similar in a sample, but polyester, SMP, and PVDF systems do not offer the same weathering performance.

The first specification question should be: What coating system is applied, at what dry-film thickness, and what exposure standard or test data supports it?

Do not assume every dark coil has a premium coating. "Black" identifies color, not resin chemistry, coating thickness, or warranty coverage.

For demanding architectural exposure, ask whether the finish is tested or specified against applicable coating requirements. AAMA 2605 is widely referenced for high-performance organic coatings on architectural aluminum components. ASTM D2244 is used to measure color difference, ASTM D4214 evaluates chalking, and ASTM D3359 evaluates coating adhesion. These methods do not automatically certify a product; they provide a common way to request and compare test records.

Use this coating documentation checklist:

• Identify the finish code, gloss range, and target color standard.

• Request the coating manufacturer name and resin type.

• Confirm total dry-film thickness for primer and topcoat.

• Ask for adhesion, impact, pencil-hardness, and salt-spray test reports where relevant.

• Confirm whether the quoted finish is intended for exterior exposure.

• Match the warranty terms to the actual application, climate, orientation, and forming process.

PVDF coating is often specified for visible façades where long-term color stability matters most. For standard fascia wrap or soffit trim, a properly applied polyester or SMP finish may be suitable, provided exposure conditions and warranty language align.

Match Alloy, Temper, and Dimensions to Forming Requirements

Coating durability can be lost when a coil is bent too tightly, scratched in a brake, or supplied with unsuitable temper. Trim applications commonly need material that forms cleanly around fascia boards, window openings, and roof edges without visible cracking at the bend.

ASTM B209 covers aluminum and aluminum-alloy plate and sheet products, including dimensional and material requirements used throughout the aluminum supply chain. Purchase documentation should state the alloy, temper, thickness, width, coating, and applicable standard rather than relying on a generic product name.

A common mistake is selecting a heavier gauge to solve every durability issue. Increased thickness can improve stiffness, but it cannot correct poor coating adhesion or inadequate pretreatment. Conversely, an overly stiff temper can increase the risk of bend cracking on tight profiles.

Before releasing production, form sample pieces using the narrowest intended bend radius. Inspect the outside of the bend under strong light for whitening, cracking, or loss of gloss. Test actual tooling, not only hand-bent samples.

Control Color, Surface Quality, and Delivery Risk

Black is less forgiving than many medium-tone finishes. Fingerprints, light scratches, waviness, and gloss variation can become highly visible, particularly on wide fascia and flat flashing. Material from different production runs can also show perceptible variation in gloss or color under daylight.

For color-critical projects, define an approval process before production starts. Provide a retained sample or approved color standard, then require each delivered coil to match the agreed reference under specified lighting conditions. A stated color value alone may not ensure an acceptable visual match because metamerism can make two finishes appear different under daylight and interior lighting.

Use the following incoming-inspection procedure:

1. Verify coil identification against the purchase order: alloy, temper, width, thickness, finish, and lot number.

2. Inspect the first outer wraps for transit dents, telescoping, edge damage, moisture staining, and coating marks.

3. Compare color and gloss to the approved sample in consistent lighting.

4. Check slit edges for burrs that could damage forming tools or create handling hazards.

5. Run a short forming trial and inspect bends, corners, and exposed flat faces.

6. Record lot numbers so replacement material can be matched if field repairs are needed.

Avoid storing dark painted coil outdoors or directly on concrete. Condensation and trapped moisture can stain surfaces or affect packaging. Keep coils dry, covered, ventilated, and elevated from the floor. Allow cold material to acclimate before unwrapping in humid conditions to reduce condensation risk.

Price comparisons should use the same technical basis: alloy, thickness tolerance, coating system, paint film build, width, coil weight, protective film, packaging, and delivery terms. A lower quoted figure can reflect a thinner substrate, narrower coating specification, reduced paint thickness, or fewer inspection controls.

For an order release, require a product data sheet, certificate of conformance where offered, approved color sample, coating test documentation, and a clearly defined claim process for concealed versus visible defects. This creates a measurable standard for durable black trim performance before fabrication begins.
