Our PVDF aluminum coil has excellent weather resistance,long service life up to 20+ years outdoors,anti-fading, stable performance in harsh environments, ideal for exterior building cladding and outdoor applications. Inquire now!
Product Details It, using fluorocarbon resin (PVDF) as the core coating material, possess qualitative advantages far exceeding those of traditional polyester coatings. It exhibits superior weather resistance and UV aging resistance, while also demonstrating excellent corrosion resistance, high color saturation, and strong color retention.
Aluminum alloys | 1050 1060 1100 3003 3004 3105 5052 5754 8011 etc. |
Thickness | 0.08-5.0mm |
Width | ＜2650mm
|
Coils Core Diameter | 150mm ,405mm, 505mm, 508mm, 510mm |
Coating Thickness | PVDF>=25micron |
Coating lifetime | about 5~10 years indoor |
Color Standard | E < 2 or it is not obvious by eyeballing |
Pencil Hardness | > 2HB |
Coating Adhesive | not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993) |
T Bend | ≤ 2 T |
Boiling Point | no any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours)
|
Corrosion resistance | deep in the 2% muriatic acid and 2% NaCL, after 48 hours, no change |
Superior weather resistance: The core coating is made of polyvinylidene fluoride (PVDF) resin, exhibiting exceptional resistance to UV aging and an outdoor service life exceeding 20 years.
Excellent corrosion resistance: It is resistant to harsh environments such as acid rain, salt spray, and industrial exhaust gases, significantly reducing the corrosion risk of the aluminum coil.
High physical properties: With a coating hardness ≥2H, it has outstanding scratch and impact resistance, along with strong adhesion, preventing cracking and peeling during aluminum coil bending and forming processes.
Stable temperature resistance: Adaptable to extreme temperature ranges from -50℃ to 150℃, it does not soften or deform at high temperatures or become brittle or crack at low temperatures, making it suitable for a wide range of applications.
Easy cleaning: The coating has low surface tension, making it resistant to dust and oil accumulation, and possesses self-cleaning properties. Routine maintenance requires only simple wiping to restore its appearance.
Rich decorative value: It has high color saturation, excellent color retention and rich color choices. The coating surface can achieve matte, high-gloss, and other textures to meet diverse design needs.
Environmental safety: The coating does not contain heavy metals or other harmful substances, and the VOC emissions during the production process are low, with no toxic substances released during the use stage.
Item | Testing items | Testing result |
1 | Coating thickness | Two coats ≥25μm; Three coats ≥32μm |
2 | Adhesion | 1 |
3 | Impact resistance | ≥50kg.cm |
4 | Solvent resistance | ≥200 times |
5 | Color difference | △E≤2.0 |
6 | Light rate/level | Deviation ≤10 |
7 | Salt spray resistance (4000h) | No less than Level 1 |
8 | Oil resistance | No change in #20 engine oil after 24 hours |
9 | Hydrochloric acid resistance | No change in 5%HCL24h |
10 | Other aging properties | 0 |

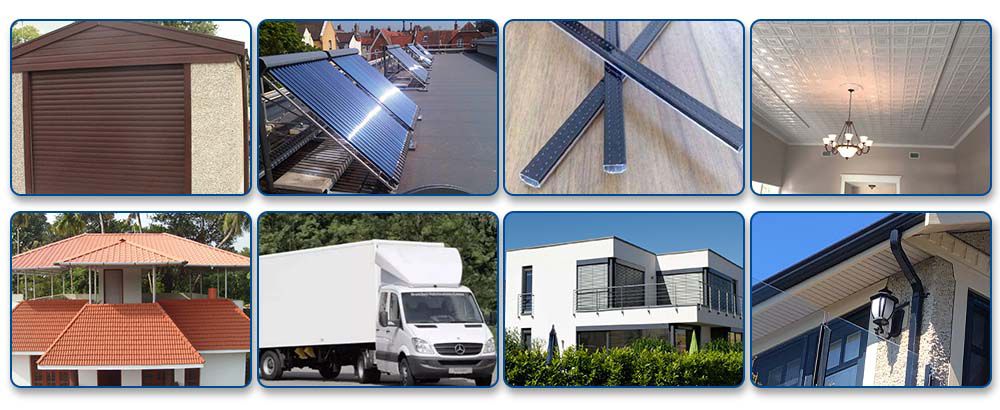

Building curtain walls
Roofing
Integrated ceilings and partitions
Door and window frames
Rail transit equipment
Containers and vans
Photovoltaic and new energy equipment
General equipment enclosures
Home appliance enclosures
Outdoor furniture and signage
The colors can be from RAL or Parton card or be customized according to the samples.
1.The PVDF resin content should be greater than or equal to 70%.
2. Inorganic pigments should be used for color matching whenever possible; bright pigments are not recommended.
3. Coating thickness should be greater than or equal to 25μm.
4. The recommended surface gloss level is below 40 degrees.
1. Product customization and material selection services
Based on the usage environment (coastal/industrial/high-altitude), corrosion resistance requirements, and budget, we recommend aluminum coil alloys, coating systems, and supporting processes.
2. Cut to Size
We provide flat sheets cut to size or narrow rolls with precise tolerances.
The surface is coated with a protective film to prevent scratches.
3.. Technical support and quality assurance
If required, we can provide test reports (weather resistance, salt spray resistance, adhesion, hardness, T-bend, etc.).
48 tests are conducted before shipment, covering T-bend, pencil hardness, MEK, impact, cross-cut, cupping, salt spray resistance, and aging resistance, ensuring compliance with standards.
4. Logistics and after-sales service
Logistics and Delivery: We will choose the most economic transportation ways, ensuring intact packaging and timely delivery.
After-sales response: In the event of any quality issues, we will immediately confirm the situation and provide solutions.
5. Value-Added services
We can provide free samples; shipping costs are borne by the customer.
We can arrange production according to plan to ensure delivery time and price stability.
