3004 vs 1100 Color Coated Aluminium Coil: What Is the Difference

Thanks to their advantages—such as being lightweight, aesthetically pleasing, weather-resistant, and easy to process—color-coated aluminum coils are widely used in architectural decoration, industrial equipment, outdoor projects, and advertising signage. The 1100 and 3004 series are two very popular choices. How do they differ, and which one should you choose?

I. Base Material Composition

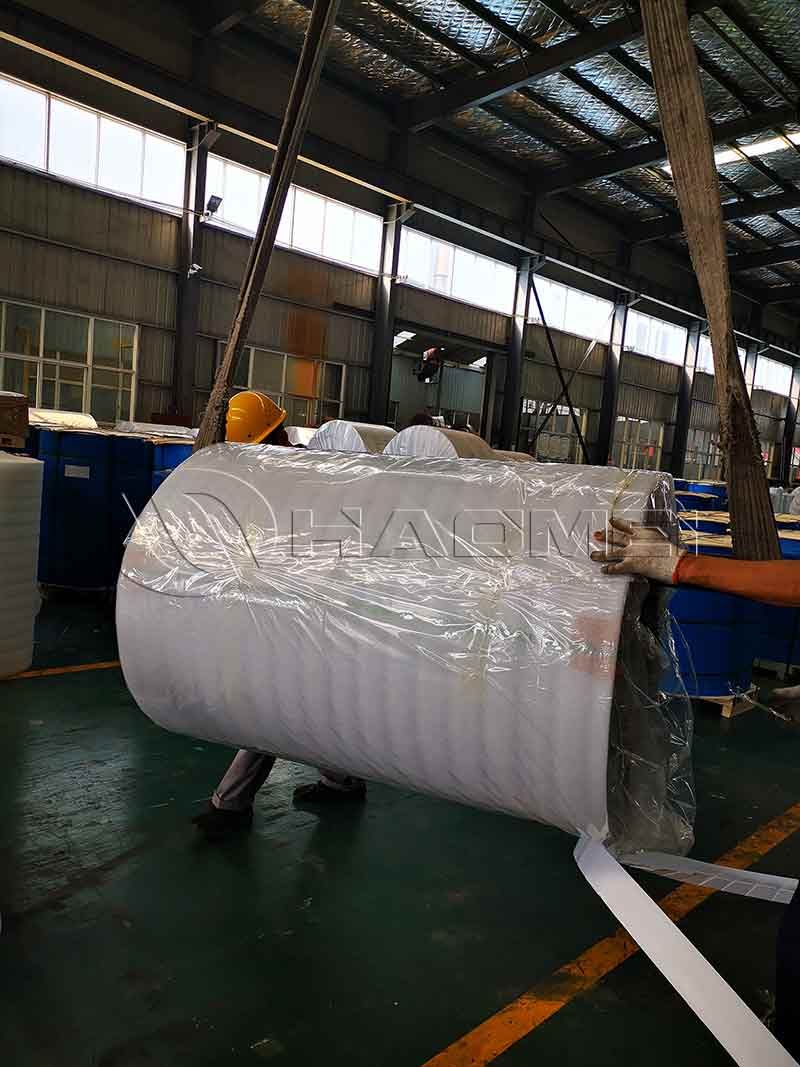

1100 color coating aluminium coil: This belongs to the 1000 series (commercially pure aluminum). It has an aluminum content exceeding 99% and contains almost no other alloying elements—only trace amounts of iron and silicon impurities. It is a high-purity industrial aluminum substrate. With its pure composition and stable properties, it serves as the most basic and standard substrate for color-coated aluminum coils on the market.

3004 color-coated aluminum coil: This belongs to the 3000 series (aluminum-manganese alloy). It is created by precisely adding 1.0%–1.5% manganese to pure aluminum, along with small amounts of magnesium and copper to optimize performance. The addition of manganese overcomes the performance limitations of pure aluminum; indeed, it is recognized in the industry as a rust-resistant aluminum alloy substrate.

II. Performance Parameters

1. Mechanical Strength

1100 pure aluminum is relatively soft, with low hardness, tensile strength, and yield strength. It lacks overall rigidity and deforms easily under stress. In contrast, the 3004 aluminum-manganese alloy far exceeds the 1100 series in strength—offering 20%–30% higher overall strength and greater hardness. It boasts superior resistance to bending, deformation, and impact, ensuring excellent stability after forming and minimizing issues like edge curling or structural collapse.

2. Corrosion Resistance

The corrosion resistance of 1100 color-coated aluminum coils is sufficient only for standard indoor or dry outdoor environments; in humid, rainy, or mildly acidic/alkaline conditions, the substrate is prone to oxidation and surface whitening.

Thanks to the rust-resistant properties of the manganese alloy, the 3004 series offers significantly enhanced resistance to oxidation, corrosion, and rainwater erosion. It provides superior weather resistance, making it suitable for harsh outdoor conditions and ensuring a longer service life compared to the 1100 series.

3. Processing and Forming Performance

1100 color-coated aluminum coils offer excellent plasticity; they are easy to bend, stamp, and cut, and allow for high processing tolerance, making them ideal for simple shapes and flat-surface applications.

While retaining good workability, the 3004 PE coating aluminium coil also offers high strength; they accommodate complex bending, stretching, and forming processes without cracking or deforming, resulting in superior overall processing versatility.

III. Application Scenarios

Applications for 1100 color-coated aluminum coils: Positioned for cost-effectiveness, these are suitable for standard environments that are dry and do not require high strength or extreme corrosion resistance. They are commonly used in static, low-load, and standard settings such as interior ceilings, wall decorations, indoor advertising panels, standard home appliance interiors, simple ventilation ducts, and roofing for standard buildings in dry regions.

Applications for 3004 color-coated aluminum coils: Positioned for high performance and stability, these are suitable for outdoor use, humid environments, areas with significant temperature fluctuations, and applications involving structural loads. They are widely used for outdoor architectural curtain walls, waterproof roofing, factory exterior walls, and the facades of public buildings like stations and airports. They are also the preferred material for refrigerated truck bodies, outdoor equipment housings, chemical ventilation ducts, and decorative projects in coastal regions.

IV. Price and Cost

In terms of cost, 1100 color-coated aluminum coils benefit from a simple base-material process and low raw material costs, resulting in a more affordable price point; they are the top choice for budget-conscious projects and bulk, low-cost procurement.

Due to the addition of alloying elements and stricter production requirements, 3004 color-coated aluminum coils have higher raw material and processing costs than the 1100 series, with a market price that is several hundred yuan higher per ton. Although the initial procurement cost is higher, their superior stability and longer service life result in minimal maintenance costs, offering better long-term value.

V. Summary of Key Differences

In short, 1100 color-coated aluminum coils are an economical, entry-level option; their advantages include low cost and ease of processing, while their drawbacks are lower strength and average weather resistance, making them suitable for standard, dry indoor applications. In contrast, 3004 color-coated aluminum coils are a high-end, practical choice; they offer high strength, rust and corrosion resistance, and excellent stability, though they come at a higher price point, making them ideal for outdoor use, harsh environments, and high-precision forming projects.
